  Home > Ametek Lamb Vac Motors >

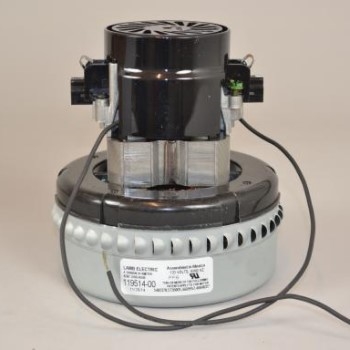

Ametek 119514-00 Blower / Vacuum Motor

Ametek 119514-00 Blower / Vacuum Motor



Brand New Ametek Motor
List Price: $119.00
Our Price: $82.25
You save $36.75!

Availability: In Stock, Ready to Ship
Product Code: 119514-00

Description Extended Information

Ametek 119514-00 Blower / Vacuum Motor

Model: 119514-00 ( 5.7 in. 120 V 2-Stage )
SPECIFICATIONS
Motor Type : Series Universal
Input Voltage : 120 VAC
Frequency : 50/60 Hz
Fan Diameter : 5.7 in.
No. Fan Stages : 2
Fan System Style : Bypass
Air Discharge : Peripheral
Operating Temp : 32-104°F
Bearing System : Ball/Ball
Frame : Skeleton
Brush Type : Carbon
Inlet Tube Dia. : None
RFI Choke : None
Speed : 1
ADDITIONAL FEATURES
Regulatory : UL Recognized, CSA certified
Comm Bracket : Aluminum
Fan Bracket : Plastic
Therm Protect : None
Insulation Class : Class A
Added Bearing Prot. :
Fan Shell Coat : None
Electrical Conn. : Lead Wires
Duty Cycle : Intermittent
Special Feature :

PERFORMANCE:

Orifice
(In.)
Current
(A)
Input Power
(W)
Speed
(RPM)
Vacuum
(in. H2O)
Air Flow
(CFM)
Air Power
(Watts)
Effic
(%)
2.000 06.50 750 20740 003.3 095.3 37 5
1.750 06.50 751 20740 005.3 091.9 57 8
1.500 06.60 765 20550 008.4 084.3 83 11
1.250 06.80 783 20170 016.3 081.4 156 20
1.125 06.80 789 20160 022.3 076.8 201 26
1.000 06.87 791 20180 029.0 069.0 235 30
0.875 06.74 779 20360 036.0 058.6 248 32
0.750 06.48 752 20740 042.9 046.9 237 31
0.625 06.14 715 21320 049.5 034.9 203 28
0.500 05.75 672 22100 055.8 023.6 155 23
0.375 05.31 623 23270 062.3 014.2 104 17
0.250 04.90 576 24430 069.3 006.9 56 10
0.000 04.56 538 25380 080.9 000.0 0 0
