  Home > Ametek Lamb Vac Motors >

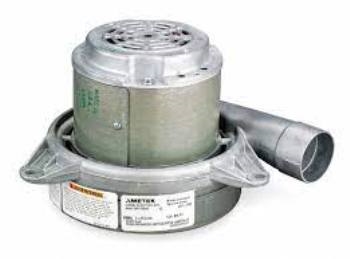

Ametek 115334 Blower / Vacuum Motor 2M174

Ametek 115334 Blower / Vacuum Motor 2M174



Brand New, Authentic Ametek Lamb Motor
List Price: $257.75
Our Price: $183.61 - Qualifies for QTY Discounts
You save $74.14!


Availability: In Stock, Ready to Ship
Product Code: 115334


Description Extended Information

Ametek Lamb 115334 Blower / Vacuum Motor 115334, 2M174

Some Blower Motor Replacement uses:

  • Spa Blower
  • Shop Vac Blower
  • Wet Dry Motor
  • Pool Blower
  • Hot Tub Blower
  • Canister Vacuum Cleaner
  • Vacuum Blowers
  • Impeller Blower
  • Air Blower
  • Pneumatic Vacuum
  • High Pressure Blower
  • Bank Tube Blower

Item Ametek Lamb Electric Vacuum/Blower 115334
Discharge Tangential
Blower Stages 2
Enclosure Open
CFM @ 2-In. Orifice 102.7
Vacuum (H2O Sealed) 110.0
Voltage 120
Hz 60/50
Phase 1
Max. Amps 13.0
Max. Air Watts 384
Mounting All Position
Thermal Protection None
Insulation Class A
Bearings Ball
Ambient (C) 40
Body Dia. (In.) 7.2
Overall Height (In.) 6-1/16
Mounting Brackets Metal
Duty Intermittent
Average Life (Hours) 700
Standards UL Recognized (E47185), CSA Certified (LR31393)

Replacement Rubber Gasket for this motor can be found here Product Code: 010-305455

Replacement Brushes for this motor can be found here Product Code: 33415-4



Products Related to this Item
Ametek Vacuum Motor Carbon Brush 33415-4 5.7" Foam/Rubber Motor Cushion Gasket for Vac Motors
Our Price: $4.85

Add
Our Price: $4.99

Add
Ametek Vacuum Motor Carbon Brush 33415-4 5.7" Foam Motor Cushion Gasket for Vac Motors

Average Customer Review: Average Customer Review: 5 of 5 5 of 5 Total Reviews: 6 Write a review.

  0 of 0 people found the following review helpful:

5 of 5 Perfect replacement for the motor in my Beam 190 January 9, 2022
Reviewer: Anonymous Person from NJ United States
This is the same model motor that I had to replace in my more-than-30-year-old Beam 190 central vacuum, and I was very happy this was still available.  Although it is exactly the same model number, and looked exactly the same, the installation required minor customization:  Since all three wires of this motor have bare leads, I had to cut away a section of the green and black wires from my original motor, and splice these onto the green and black wires of this new motor, in order to have the special connectors to fit my installation.  I also had to drill a 5/32" hole in the exit pipe of the new motor (to match a similar hole in the original motor), in order to securely connect the motor's exit pipe to my central vacuum's exhaust port.  This wasn't a big deal, and the unit now works perfectly again.
