  Home > Ametek Lamb Vac Motors >

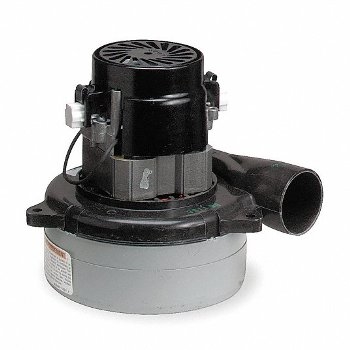

Ametek 116353-00 Blower / Vacuum Motor

Ametek 116353-00 Blower / Vacuum Motor



Brand New Ametek Motor
List Price: $189.99
Our Price: $125.99
You save $64.00!

Availability: Usually Ships in 3 to 5 Days
Product Code: 116353-00

Description Extended Information

Ametek Lamb 116353-00 Blower / Vacuum Motor

Model: 116353-00 ( 5.7 in. 220 V 2-Stage )

SPECIFICATIONS
Motor Type : Series Universal
Input Voltage : 220 VAC
Frequency : 50/60 Hz
Fan Diameter : 5.7 in.
No. Fan Stages : 2
Fan System Style : Bypass
Air Discharge : Tangential
Operating Temp : 32-104°F
Bearing System : Ball/Ball
Frame : Skeleton
Brush Type : Carbon
Inlet Tube Dia. : None
RFI Choke : None
Speed : 1


ADDITIONAL FEATURES
Regulatory : UL Recognized, ,
Comm Bracket : Aluminum
Fan Bracket : Plastic
Therm Protect : None
Insulation Class : Class A
Added Bearing Prot. :
Fan Shell Coat : None
Electrical Conn. : Lead Wires
Duty Cycle : Intermittent
Special Feature :
PERFORMANCE:

Orifice
(In.)
Current
(A)
Input Power
(W)
Speed
(RPM)
Vacuum
(in. H2O)
Air Flow
(CFM)
Air Power
(Watts)
Effic
(%)
2.000 06.60 1365 17481 004.7 113.2 63 5
1.750 06.60 1360 17430 007.6 109.6 98 7
1.500 06.60 1352 17435 012.6 102.4 152 11
1.250 06.40 1337 17572 022.2 094.5 247 18
1.125 06.30 1317 17744 029.0 087.1 297 23
1.000 06.10 1281 18044 036.9 077.4 335 26
0.875 05.90 1241 18397 046.1 066.1 358 29
0.750 05.70 1186 18917 054.5 052.7 338 28
0.625 05.40 1121 19715 062.4 039.0 286 26
0.500 05.00 1036 20658 070.9 026.5 221 21
0.375 04.60 963 21660 078.6 015.8 146 15
0.250 04.20 895 22585 085.5 007.6 73 8
0.000 04.00 843 23456 094.0 000.0 0 0
