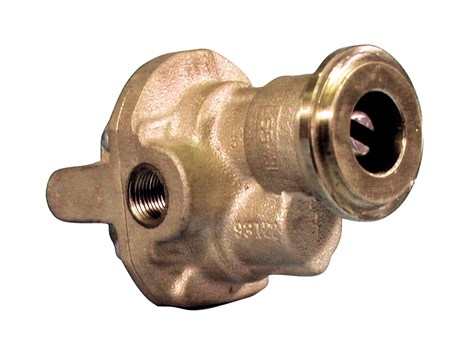

Oberdorfer Gear Pump Model# N61K10G01F02
Oberdorfer Gear Pump Model# N61K10G01F02



List Price: $377.38
Our Price: $272.17
You save $105.21!


Availability: In Stock, Usually Ships in 24 Hours
Product Code: N61K10G01F02

Description

Oberdorfer Gear Pump Model# N61K10G01F02

Product Information


The carbonator motor mounting uses a circular clamp, similar to a hose clamp, as means of attaching the pump to a specially machined hub on the motor. This concept was first developed for the vending machine industry to pump carbonated beverages in soft drink dispensers. The main advantages are compactness and economy due to the elimination of the adapter casting. The rotary gear pump features an all bronze design and 303 stainless steel shafts with options of non-metallic gears and a variety of shaft seals. The built-in relief valve is available in two options; internal recirculation to suction side or external connection for return line to supply tank.

FEATURES

  • Bronze Body
  • Bronze Spur Gears
  • Self-lubricating Carbon Bearings
  • Nitrile Lip Seal - Optional fluoroelastomer Lip Seal
  • Carbonator Motor Mount

LIQUIDS & TEMPERATURES

Bronze pumps are suitable for water, oil, and mild chemicals in the pH-range from 4-10. Viscous liquids may be handled with carbonator pumps up to a viscosity of 300 SSU. Higher viscosities require a pump speed lower than 1725 RPM, which is currently not available in carbonator motors. Liquids containing abrasives, solids, powders or pigments are highly detrimental to pump life and must be avoided. The recommended liquid temperature range is from 32oF to 140oF. If more extreme temperature conditions exist, factory should be consulted. Allowing the liquid to freeze in the pump can cause damage.

SUCTION LIFT

For a first start up, the pump should be primed to avoid dry running. Gear pumps are self-priming, but a foot valve with strainer is recommended at the beginning of the suction line. This will keep the gear chamber primed to insure instant flow when the pump is started. Maximum suction lift is 20 feet. The suction line should be as short as possible.
