  Home > Ametek Lamb Vac Motors >

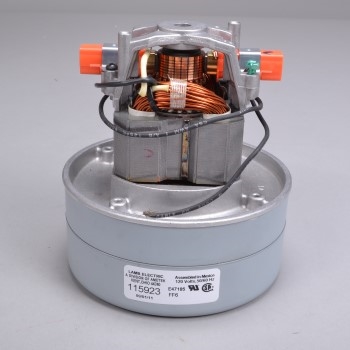

Ametek 115923 Blower / Vacuum Motor 4M903

Ametek 115923 Blower / Vacuum Motor 4M903



Brand New, Authentic Ametek Lamb Motor
List Price: $149.95
Our Price: $68.12 >> Buy 5 or More at $60.00
You save $81.83!

Availability: In Stock, Ready to Ship
Product Code: 115923


Description Extended Information

Ametek Lamb 115923 Blower / Vacuum Motor - 4M903, 115923

*Buy 5 or more at $60.00 each!! (BRAND NEW MOTORS)


Model: 115923 ( 5.7 in. 120 V 2-Stage )

SPECIFICATIONS:
Motor Type : Series Universal
Input Voltage : 120 VAC
Frequency : 50/60 Hz
Fan Diameter : 5.7 in.
No. Fan Stages : 2
Fan System Style : Through-Flow
Air Discharge :
Operating Temp : 32-104°F
Bearing System : Ball/Ball
Frame : Skeleton
Brush Type : Carbon
Inlet Tube Dia. : None
RFI Choke : None
Speed : 1


ADDITIONAL FEATURES:
Regulatory : UL Recognized, CSA certified
Comm Bracket : Aluminum
Fan Bracket : Aluminum
Therm Protect : None
Insulation Class : Class A
Added Bearing Prot. :
Fan Shell Coat : None
Electrical Conn. : Lead Wires
Duty Cycle : Intermittent
Special Feature :
PERFORMANCE:

Orifice
(In.)
Current
(A)
Input Power
(W)
Speed
(RPM)
Vacuum
(in. H2O)
Air Flow
(CFM)
Air Power
(Watts)
Effic
(%)
2.000 10.60 1164 22510 005.6 122.0 80 7
1.750 10.70 1171 22510 009.2 120.0 131 11
1.500 10.80 1170 22470 015.7 114.0 210 18
1.250 10.70 1171 22380 027.3 104.0 335 29
1.125 10.70 1169 22510 035.5 096.0 401 34
1.000 10.50 1160 22720 044.3 084.0 439 38
0.875 10.20 1146 23070 053.5 071.0 447 39
0.750 09.70 1117 23700 062.9 056.0 417 37
0.625 09.00 1061 24520 072.5 042.0 357 34
0.500 08.40 983 25460 080.7 028.0 267 27
0.375 07.70 908 26450 088.0 017.0 172 19
0.250 06.90 818 26880 091.3 008.0 84 10
0.000 06.60 785 28400 100.4 000.0 0 0


Replacement Rubber Gasket for this motor can be found here Product Code: 010-8002-07

Replacement Brushes for this motor can be found here Product Code: 33392-11
