  Home > Ametek Lamb Vac Motors >

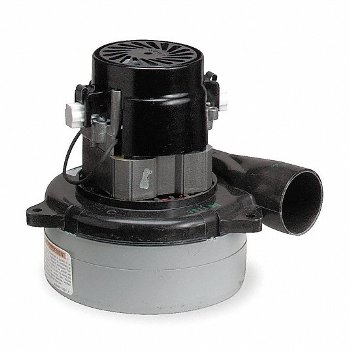

Ametek 116207-00 Blower / Vacuum Motor 2M201

Ametek 116207-00 Blower / Vacuum Motor 2M201



Brand New, Authentic Ametek Lamb Motor
List Price: $140.60
Our Price: $97.23
You save $43.37!


Availability: In Stock, Ready to Ship
Product Code: 116207-00


Description Extended Information

Ametek Lamb 116207-00 Blower / Vacuum Motor 116207-00, 2M201

Replaces some models listed below

DuoVac® SIG1570, DuoVac® SIG1625,

Nutone® CV400, Nutone® CV450 (same as 116210-50)

Modern Day Central Vaccum Motors, MD (same as 116210-50)

Extended Product Information

  • Item Ametek Vacuum Motor 116207-00
  • Discharge Tangential
  • Blower Stages 2
  • Enclosure Open
  • CFM @ 2-In. Orifice 104.0
  • Vacuum (H2O Sealed) 91.3
  • Voltage 120
  • Hz 60/50
  • Phase 1
  • Max. Amps 9.0
  • Max. Air Watts 300
  • Mounting All Position
  • Thermal Protection None
  • Insulation Class A
  • Bearings Ball
  • Ambient (C) 40
  • Body Dia. (In.) 5.7
  • Overall Height (In.) 6 1/3
  • Mounting Brackets Thermoset
  • Duty Intermittent
  • Average Life (Hours) 500
  • Standards UL Recognized (E47185), CSA Certified (LR31393)
  • Weight 5.3
  • Replacement Carbon Brushes 33384
  • Replacement Foam Rubber Gasket 010-8002-07
