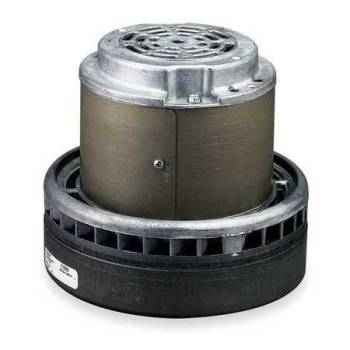

Ametek 115519 Blower/Vacuum Motor 4M892

Ametek 115519 Blower/Vacuum Motor 4M892



Brand New, Authentic Ametek Lamb Motor
List Price: $389.00
Our Price: $246.29
You save $142.71!


Availability: In Stock, Ready to Ship
Product Code: 115519

Description Extended Information

Ametek Lamb 115519 Blower/Vacuum Motor 115519, 4M892

New Page 1
SPECIFICATIONS:
Motor Type : Series Universal
Input Voltage : 220 VAC
Frequency : 50/60 Hz
Fan Diameter : 7.2 in.
No. Fan Stages : 2
Fan System Style : Bypass
Air Discharge : Peripheral
Operating Temp : 32-104F
Bearing System : Ball/Ball
Frame : Skeleton
Brush Type : Carbon
Inlet Tube Dia. : None
RFI Choke : None
Speed : 1

ADDITIONAL FEATURES:
Regulatory : UL Recognized, CSA certified
Comm Bracket : Aluminum
Fan Bracket : Aluminum
Therm Protect : None
Insulation Class : Class A
Added Bearing Prot. :
Fan Shell Coat : None
Electrical Conn. : Lead Wires
Duty Cycle : Intermittent
Special Feature :
PERFORMANCE:
Orifice
(In.)
Current
(A)
Input Power
(W)
Speed
(RPM)
Vacuum
(in. H2O)
Air Flow
(CFM)
Air Power
(Watts)
Effic
(%)
2.000 05.70 1202 15708 004.2 107.3 53 4
1.750 05.70 1192 15708 005.9 102.0 67 6
1.500 05.70 1202 15708 011.6 098.3 134 11
1.250 05.70 1192 15626 020.2 090.1 214 18
1.125 05.70 1192 15677 026.7 083.8 263 22
1.000 05.70 1192 15811 034.4 074.8 303 25
0.875 05.50 1171 15914 043.1 064.0 324 28
0.750 05.30 1126 16275 052.7 051.8 321 29
0.625 05.10 1082 16841 063.0 039.2 290 27
0.500 04.80 1015 17614 071.7 026.7 225 22
0.375 04.40 948 18386 080.7 016.0 152 16
0.250 04.00 881 19313 089.1 007.8 82 9
0.000 03.80 814 19960 097.2 000.0 0 0
