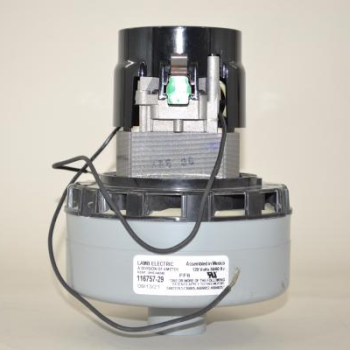

Ametek 116757-29 Blower / Vacuum Motor

Ametek 116757-29 Blower / Vacuum Motor



Brand New, Authentic Ametek Lamb Motor
List Price: $199.00
Our Price: $143.99
You save $55.01!


Availability: In Stock, Ready to Ship
Product Code: 116757-29

Description Extended Information

Ametek Lamb 116757-29 Blower / Vacuum Motor

Model: 116757-29 ( 5.7 in. 120 V 2-Stage )

SPECIFICATIONS
Motor Type : Series Universal
Input Voltage : 120 VAC
Frequency : 50/60 Hz
Fan Diameter : 5.7 in.
No. Fan Stages : 2
Fan System Style : Bypass
Air Discharge : Peripheral (Acustek)
Operating Temp : 32-104°F
Bearing System : Ball/Ball
Frame : Skeleton
Brush Type : Carbon
Inlet Tube Dia. : 1.5 in.
RFI Choke : None
Speed : 1

ADDITIONAL FEATURES
Regulatory : UL Recognized, CSA certified,
Comm Bracket : Aluminum
Fan Bracket : Plastic
Therm Protect : None
Insulation Class : Class A
Added Bearing Prot. : Air Seal
Fan Shell Coat : Epoxy
Electrical Conn. : Lead Wires
Duty Cycle : Intermittent
Special Feature :


Orifice
(In.)
Current
(A)
Input Power
(W)
Speed
(RPM)
Vacuum
(in. H2O)
Air Flow
(CFM)
Air Power
(Watts)
Effic
(%)
2.000 07.8090117649 003.3 097.0374
1.750 07.8090517573 005.5 096.0627
1.500 07.9091117484 009.3 092.010011
1.250 07.9091817431 016.4 085.016318
1.125 07.9091717389 021.9 079.020422
1.000 07.9091217487 028.4 071.023726
0.875 07.7089517692 035.6 061.025528
0.750 07.4086218054 043.5 050.025329
0.625 07.0081718693 051.4 037.022528
0.500 06.5075819523 059.3 026.017924
0.375 05.9069420516 067.2 015.012218
0.250 05.4064321496 074.2 007.06310
0.000 05.0059622332 084.9 000.000
