  Home > Generators & Other Motors > Alternators >

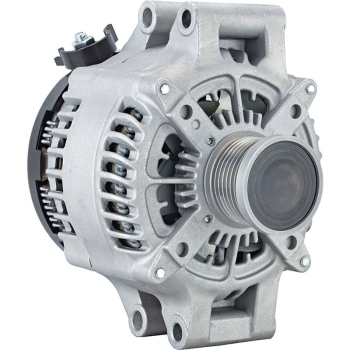

400-52685R Alternator Denso 12V 170A Alt Lester11753 Family Denso SC (Hairpin) Volt12
400-52685R Alternator Denso 12V 170A Alt Lester11753 Family Denso SC (Hairpin) Volt12

Our Price: $312.57


Free Shipping
Product Code: 400-52685R

Description


400-52685R Alternator Denso 12V 170A Alt Lester11753 Family Denso SC (Hairpin) Volt12

Description: Denso Alternator
OEM(s): J&N Electrical Products
Lester: 11753
Family: Denso SC (Hairpin)
Volt: 12
Amps: 170
Condition: Remanufactured
Regulator Clock: 12:00
Rotation Direction: Clockwise
Mount Hole 1 Type: Slotted
Mount Hole ID 2: 8.400mm
Mount Hole 2 Type: Unthreaded
Mount Hole ID 3: 10.900mm
Mount Hole 3 Type: Unthreaded
Mount Hole ID 4: 10.900mm
Mount Hole 4 Type: Unthreaded
Mounting Ear Thickness: 62.500mm / 2.461in
Mounting Ear 2 Thickness: 62.500mm / 2.461in
Mounting Ear 3 Thickness: 62.500mm / 2.461in
Mounting Ear 4 Thickness: 62.500mm / 2.461in
Fan Location: Internal
Regulator Location: Internal
Terminal ID 2: B+
Terminal 2 Size: M8x1.25
Terminal ID 3: LIN
Terminal 3 Size: Spade
Terminal ID 4: N/C
Terminal 4 Size: Spade
Polarity: Negative
Number of Grooves: 7
Groove OD: 48.900mm / 1.925in
Pulley Type: Clutch
Pulley Outer Diameter: 54.200mm / 2.134in
Weight: 17.4lbs / 7.9kg
