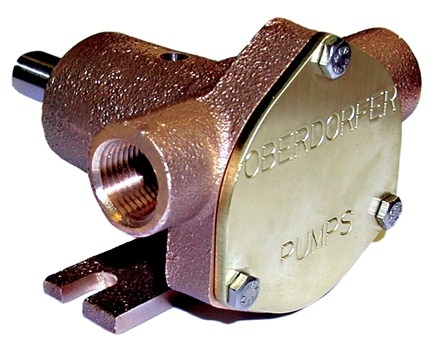

Oberdorfer FIP Pump Model# N200M
Oberdorfer FIP Pump Model# N200M



List Price: $768.00
Our Price: $691.00
You save $77.00!


Availability: Usually Ships in 24 Hours
Product Code: N200M

Description

Oberdorfer FIP Pump Modle# N200M

All pedestal and flange mounted Rubber Impeller Pumps are made of high quality bronze of maximum corrosion resistance. All shafts consist of stainless steel grade 303. Top of the line models have ball bearings and mechanical seals while others have bronze or carbon bearings and lip type seals. Impellers are made of Neoprene rubber. Nitrile impellers are also available.

APPLICATIONS

MARINE

  • Engine cooling
  • Bilge
  • Water Circulation
  • Ballast Transfer
  • Wash-down

INDUSTRIAL

  • Mixing
  • Liquid Circulation
  • Sump Drainage

FEATURES

  • Bronze Construction
  • 3/8” Suction and Discharge Ports
  • Mechanical Carbon Ring, Ceramic Face Main Pump Seal Standard, Optional Nitrile Lip Seal
  • Two Sealed Ball Bearings Spaced for Maximum Load Ability
  • Drain Openings Separate Seal & Bearing Areas
  • Neoprene Impeller Standard
  • Stainless Steel Shaft
  • Machined-in Cam

DRIVE

Either direct drive with flexible coupling or pulley drive can be used. Make sure both flexible coupling halves are properly aligned. When using pulley, do not over tighten belt.

LIQUIDS & TEMPERATURES

Liquids compatible with neoprene can be pumped including fresh and salt water solutions and mild chemicals. Do not pump severe solvents or acids. When possible, flush pump with fresh water after each usage. Extremes of cold and heat will affect impeller life. Limits of 40° to 140° F should be observed. Do not allow liquid in pump to freeze. Drain pump by loosening cover screws. Use methyl alcohol based anti-freeze compounds.

SUCTION LIFT

Suction lift of 15 feet is possible when impeller is wet. Suction lines must be air tight in order for pump to self prime. A foot valve at beginning of suction line is recommended.
