  Home > Generators & Other Motors >

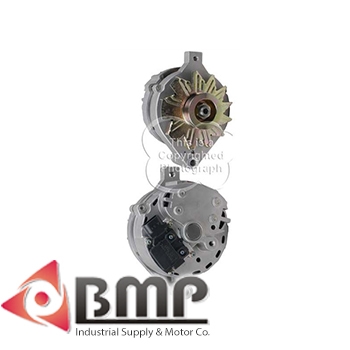

400-14010 Alternator, 12V, 75A, Ford 2G/IAR, New
400-14010 Alternator, 12V, 75A, Ford 2G/IAR, New



Brand New Alternator
Our Price: $105.65


Availability: In Stock - Usually Ships in 24 Hours
Product Code: 400-14010

Description Fitment

400-14010 Alternator, 12V, 75A, Ford 2G/IAR, New

Description: Alternator
Critical Notes: It Is Highly Recommended to Replace the Output Lead with Rectifier Plug #110-14007 at the Time of Alternator Replacement
OEM(s): Ford
Family: Ford 2G/IAR
Voltage: 12
Amps: 75
Condition: New
Mount Type: Spool
Mtg Ear 1 Hole: 3/8-16 Threaded
Mtg Ear 2 Hole: 11.2mm Unthreaded
Mtg Ear 1 Thickness: 0.827in / 21mm
Mtg Ear 2 Thickness: 2.996in / 76.1mm
Regulator Clock: 10:00
Fan Location: External
Regulator Location: Internal
B+ Terminal: Blade
A Terminal: Spade
S Terminal: Spade
I Terminal: Spade
Polarity: Negative
Pulley Grooves: 6
Pulley Type: Solid
Pulley OD: 2.362in / 60mm
Warranty: 1 Year
Notes:
  • (1) M8-1.25 Hole in SRE Housing
Weight: 12.5 lbs / 5.68 kg
Diagram(s): Diagram #1-11B
Substitutes:
Wilson 90-02-5033

References:
J&N 400-14009
JANNCO 400-14009R, 400-14010R
Arrowhead AFD0003, AFD0068
Denso 210-5121
Ford E7AFCA-F, GL224, GL237, GL241, GL241A, GL244, GL246, GL248, GL252, GL253
Lester 7716, 7716-10, 7729, 7733, 7733-3, 7734, 7735, 7735-10, 7736, 7739

Share your knowledge of this product with other customers... Be the first to write a review

Browse for more products in the same category as this item:

Generators & Other Motors
Generators & Other Motors > Alternators
Generators & Other Motors > Alternators > 12V Alternators
Generators & Other Motors > Alternators > 12V Alternators > 61 - 80AMP
