  Home > Generators & Other Motors >

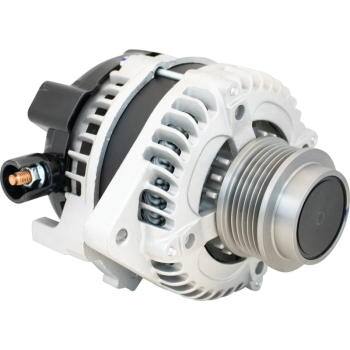

400-52745 Denso 12V 130A Alternator, Lester 11775
400-52745 Denso 12V 130A Alternator, Lester 11775

Our Price: $208.16


Availability: Usually Ships in 24 Hours
Product Code: 400-52745

Description


400-52745 Denso 12V 130A Alternator, Lester 11775

Description: Denso Alternator
OEM(s): J&N Electrical Products
Lester: 11775
Family: Denso SC (Hairpin)
Volt: 12
Amps: 130
Condition: New
Regulator Clock: 11:00
Rotation Direction: Clockwise
Mount Hole ID 1: 8.200mm
Mount Hole 1 Type: Unthreaded
Mount Hole 2 Type: Unthreaded
Alt Mounting Foot ID: 10.200mm
Mounting Ear 2 Thickness: 19.200mm
Alt Mounting Foot Thickness: 47mm
Fan Location: Internal
Regulator Location: Internal
Terminal ID: B+
Terminal Size: M8-1.25
Terminal ID 2: IG
Terminal 2 Size: Spade
Terminal ID 3: C
Terminal 3 Size: Spade
Terminal ID 4: FR
Terminal 4 Size: Spade
Terminal ID 5: L
Terminal 5 Size: Spade
Polarity: Negative
Number of Grooves: 6
Groove OD: 65.200mm
Pulley Type: Serpentine Decoupler
Pulley Outer Diameter: 70.450mm
Shaft Pulley OD: 17mm
Shaft: M14-1.50
Weight: 15.44lbs / 7kg
