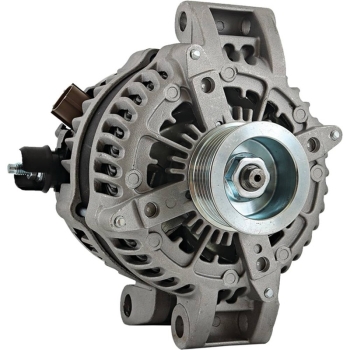

400-52430R Denso 12V 225A Alternator, Lester 11620, 11641
400-52430R Denso 12V 225A Alternator, Lester 11620, 11641

Our Price: $280.42


Availability: Usually Ships in 24 Hours
Product Code: 400-52430R

Description


400-52430R Denso 12V 225A Alternator, Lester 11620, 11641

Description: Denso Alternator
OEM(s): J&N Electrical Products
Lester: 11620, 11641
Family: Denso SC (Hairpin)
Volt: 12
Amps: 225
Condition: Remanufactured
Regulator Clock: 2:00
Rotation Direction: Clockwise
Mount Hole ID 1: 11.300mm
Mount Hole 1 Type: Unthreaded
Mount Hole 2 Type: Unthreaded
Mount Hole ID 3: 14mm
Mount Hole 3 Type: Unthreaded
Mounting Ear Thickness: 55.100mm / 2.169in
Mounting Ear 2 Thickness: 55.100mm / 2.169in
Mounting Ear 3 Thickness: 55.200mm / 2.173in
Fan Location: Internal
Regulator Location: Internal
Terminal ID 2: B+
Terminal 2 Size: M8x1.25
Terminal ID 3: LI
Terminal 3 Size: Spade
Terminal ID 4: RC
Terminal 4 Size: Spade
Terminal ID 5: AS
Terminal 5 Size: Spade
Polarity: Negative
Number of Grooves: 6
Pulley Type: Solid
Pulley Outer Diameter: 60mm / 2.362in
Warranty: 1 Year
Weight: 15.44lbs / 7kg
