  Home > Generators & Other Motors > Alternators >

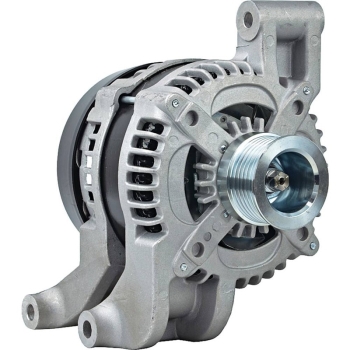

400-52695R Alternator Denso 12V 120A Alt Lester24046 Family Denso SC (Hairpin) Volt12
400-52695R Alternator Denso 12V 120A Alt Lester24046 Family Denso SC (Hairpin) Volt12

Our Price: $62.95


Free Shipping
Product Code: 400-52695R

Description


400-52695R Alternator Denso 12V 120A Alt Lester24046 Family Denso SC (Hairpin) Volt12

Description: Denso Alternator
OEM(s): J&N Electrical Products
Lester: 24046
Family: Denso SC (Hairpin)
Volt: 12
Amps: 120
Condition: Remanufactured
Regulator Clock: 9:00
Rotation Direction: Clockwise
Mount Hole ID 1: 8.500mm
Mount Hole 1 Type: Unthreaded
Mount Hole 2 Type: Unthreaded
Mount Hole ID 3: 9.500mm
Mount Hole 3 Type: Unthreaded
Mounting Ear Thickness: 48mm / 1.890in
Mounting Ear 2 Thickness: 72mm / 2.835in
Mounting Ear 3 Thickness: 72mm / 2.835in
Fan Location: Internal
Regulator Location: Internal
Terminal ID 2: B+
Terminal 2 Size: M8x1.25
Terminal ID 3: S
Terminal 3 Size: Spade
Terminal ID 4: RC
Terminal 4 Size: Spade
Terminal ID 5: L
Terminal 5 Size: Spade
Polarity: Negative
Number of Grooves: 6
Groove OD: 49.200mm / 1.937in
Pulley Type: Solid
Pulley Outer Diameter: 53mm / 2.087in
Weight: 15.44lbs / 7kg


Share your knowledge of this product with other customers... Be the first to write a review
